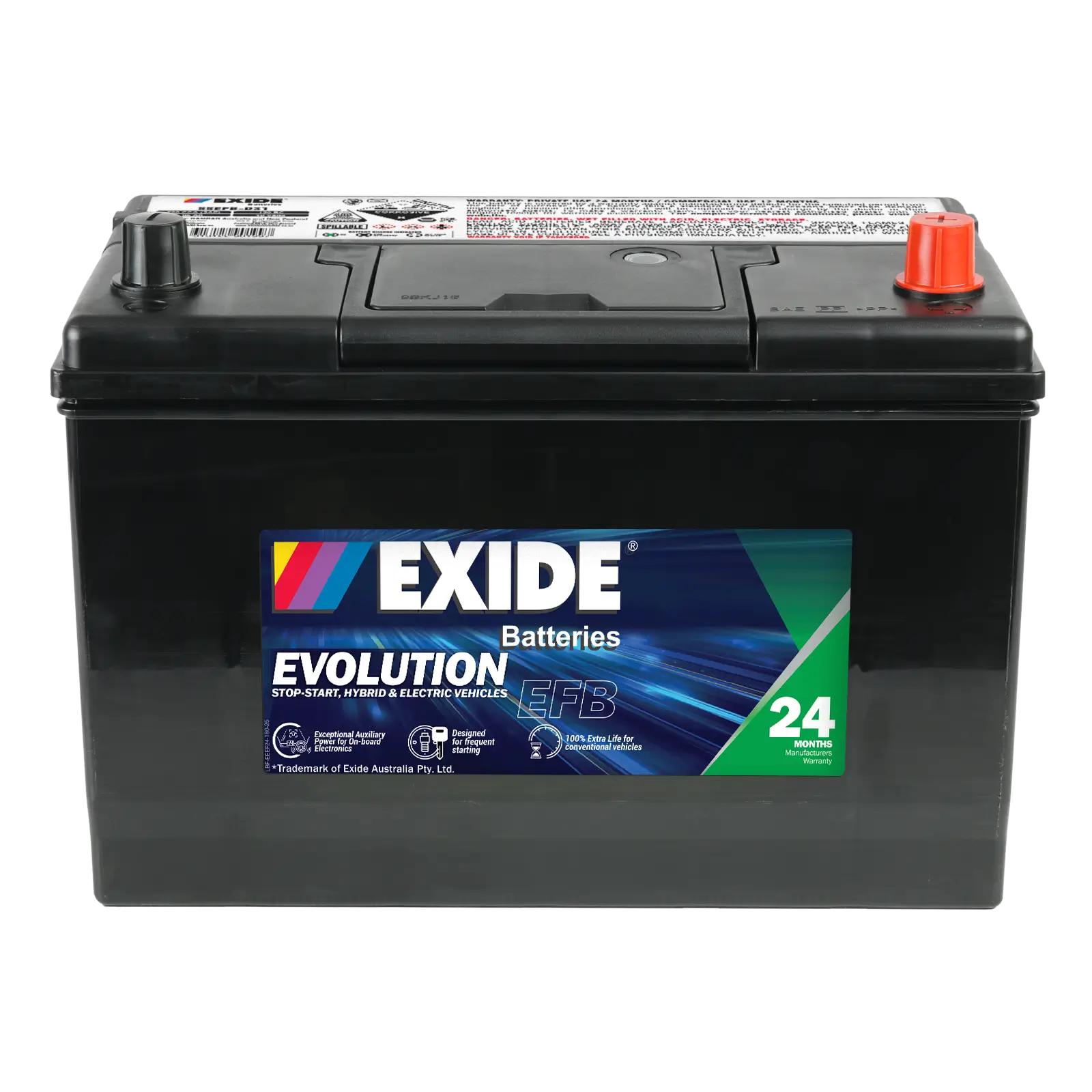

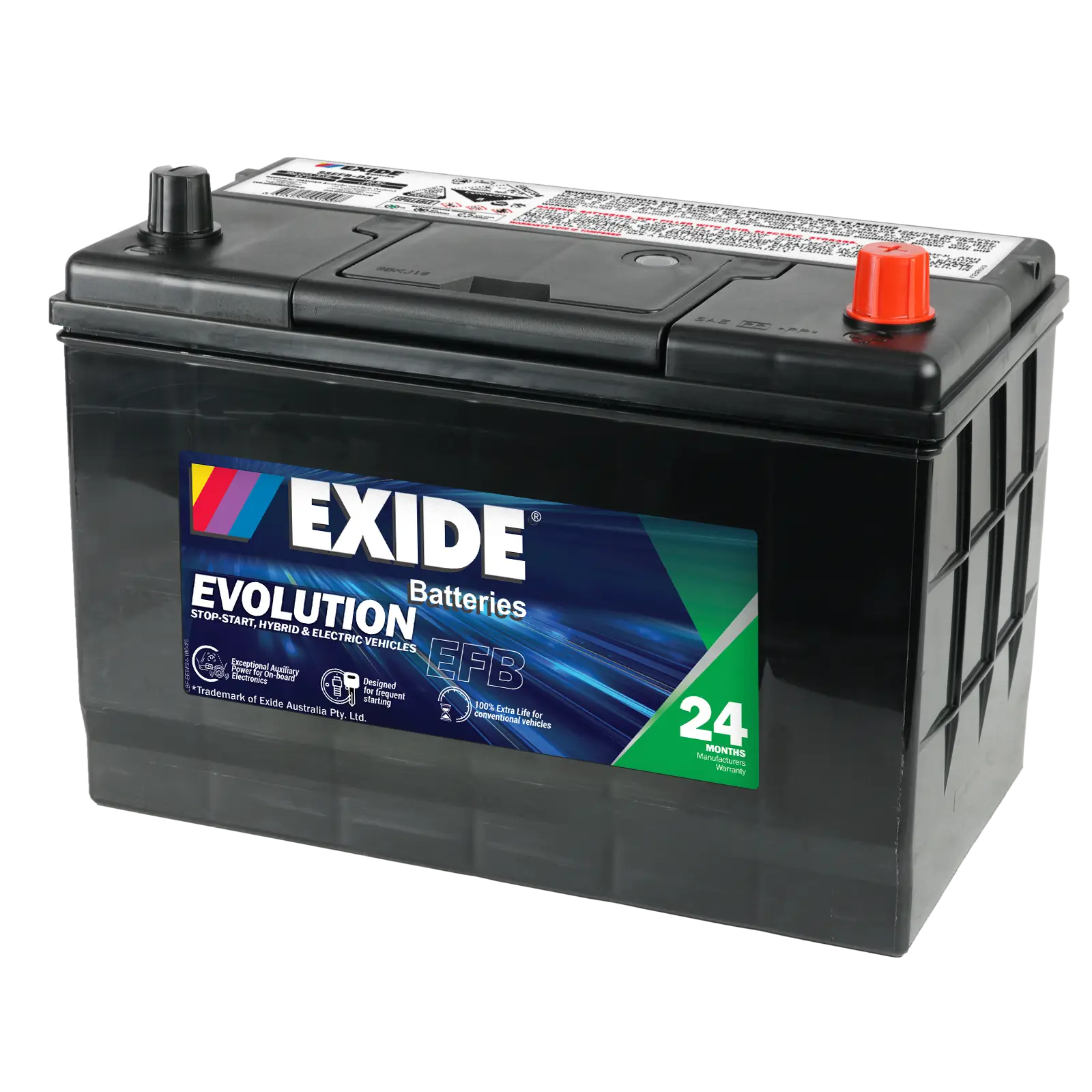

SSEFB-D31 EVOLUTION

Overview

SSEFB-D31 from Exide’s Evolution range delivers exceptional auxiliary power for on-board electronics. Designed for frequent starting with 100% extra life. It’s ideal for stop-start, hybrid & electric vehicles.

SSEFB-D31 EVOLUTION

EVOLUTION (Stop-Start, Hybrid and EV)

Product Specifications

Battery Type	ENHANCED FLOODED BATTERIES (EFB)
Technology	EFB SS
Voltage	12
Capacity (AH, 20HR)	95
Cold Cranking Amps (CCA, SAE)	760
Reserve Capacity (RC, min)	150

Physical Dimensions & Weight

Size	N70
Length (mm)	303
Width (mm)	172
Height (mm)	200
Total Height (mm)	220
Approximate Weight (kg)	23

Fitment & Installation

Assembly	C
Terminal/Post Type	STD
Ledge	NL

Maintenance & Usability

Accessibility	TS
Electrolyte Indicator (HYDRO)	YES

Warranty & Coverage

Private Use Warranty (Months)	24
Commercial Use Warranty (Months)	12

Datasheet

Download

Abbreviations

AP	Automotive Post	CV	Central Venting
CT	Centered Terminal	DFA	Dual Fit Aligned Terminals
DFP	Dual Fit Parallel Terminals	DST	Dual System Terminals
DT	Automotive Post & Stud	DWNT	Dual Wingnut
EL	End Ledge	ELPT	Embedded Low Profile
EUTR	Embedded Universal/Reverse	F1	F1 Terminal
F1-F2	F1/F2 Terminal	F2	F2 Terminal
F3	F3 Terminal	F3W	F3W Terminal
F5	F5 Terminal	F8	F8 Terminal
F9	F9 Terminal	F10	F10 Terminal
F10M8	F1 Terminal (1.25mmx15mm Stud I)	F11	F11 Terminal
F11M6	F11 Terminal (6mm/8mm Insert)	F12	F12 Terminal
F12M8	F12 Terminal (1.25mmx15mm Stud I)	F13	F13 Terminal
F14M8	F14 Terminal (1.25mmx15mm Stud I)	F14	F14 Terminal
F18	F18 Terminal	F22	F22 Terminal
FL	Front Ledge	FDH	Fold Down Handles
HE	Hydrometer Eye	M6	M6
M8-DT	Automotive Post & Stud (1.25mmx15mm Stud I)	M8	1.25mmx15mm Stud I
OLT	Offset Lug Terminal	PT	Pencil Terminal
RT	Recessed Terminal	RPH	Rope Handles
RTH	Retractable Handles	STD	Standard Terminal
ST	Side Terminal	TS	Top Stud Terminal
UT	Universal	WNT	Wingnut
