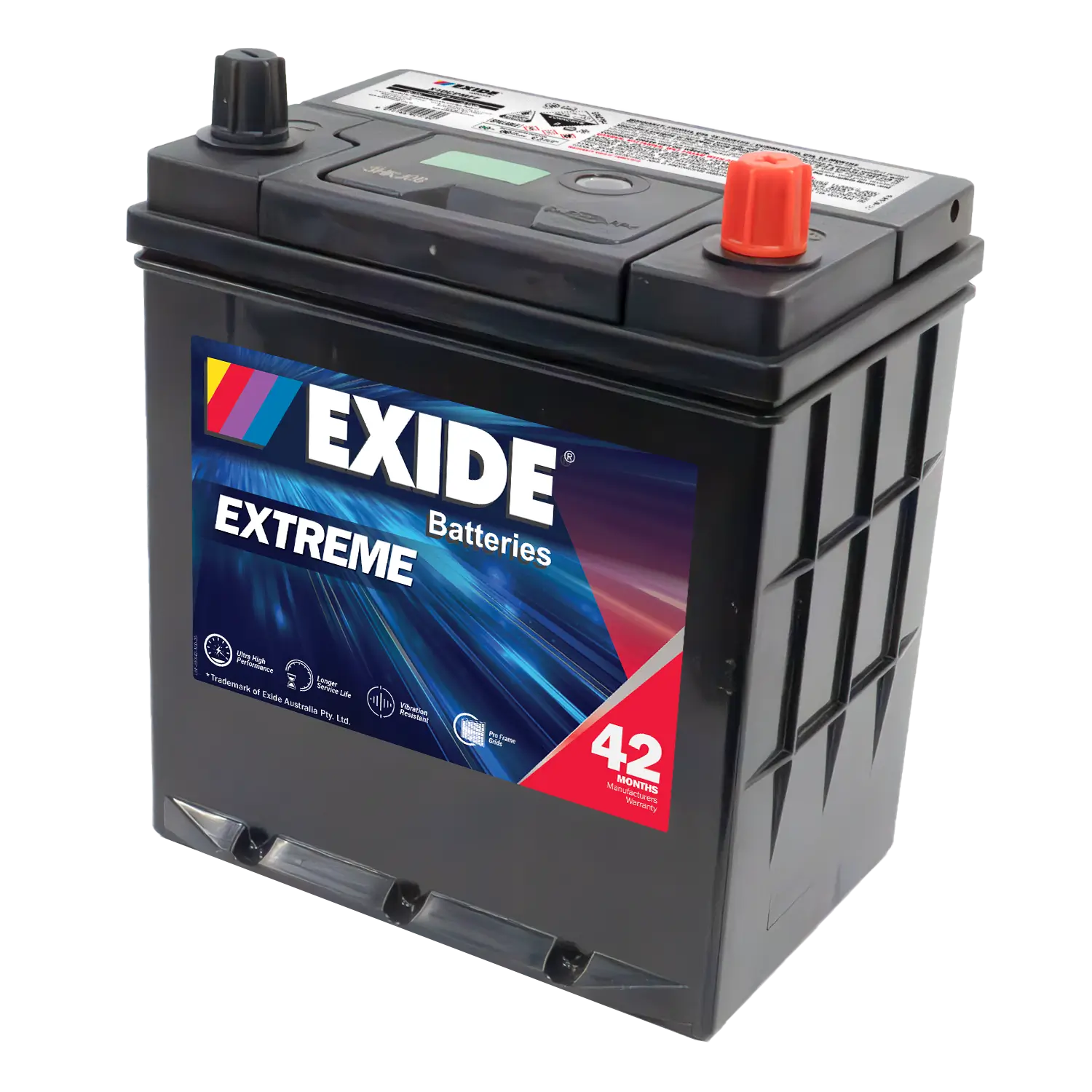

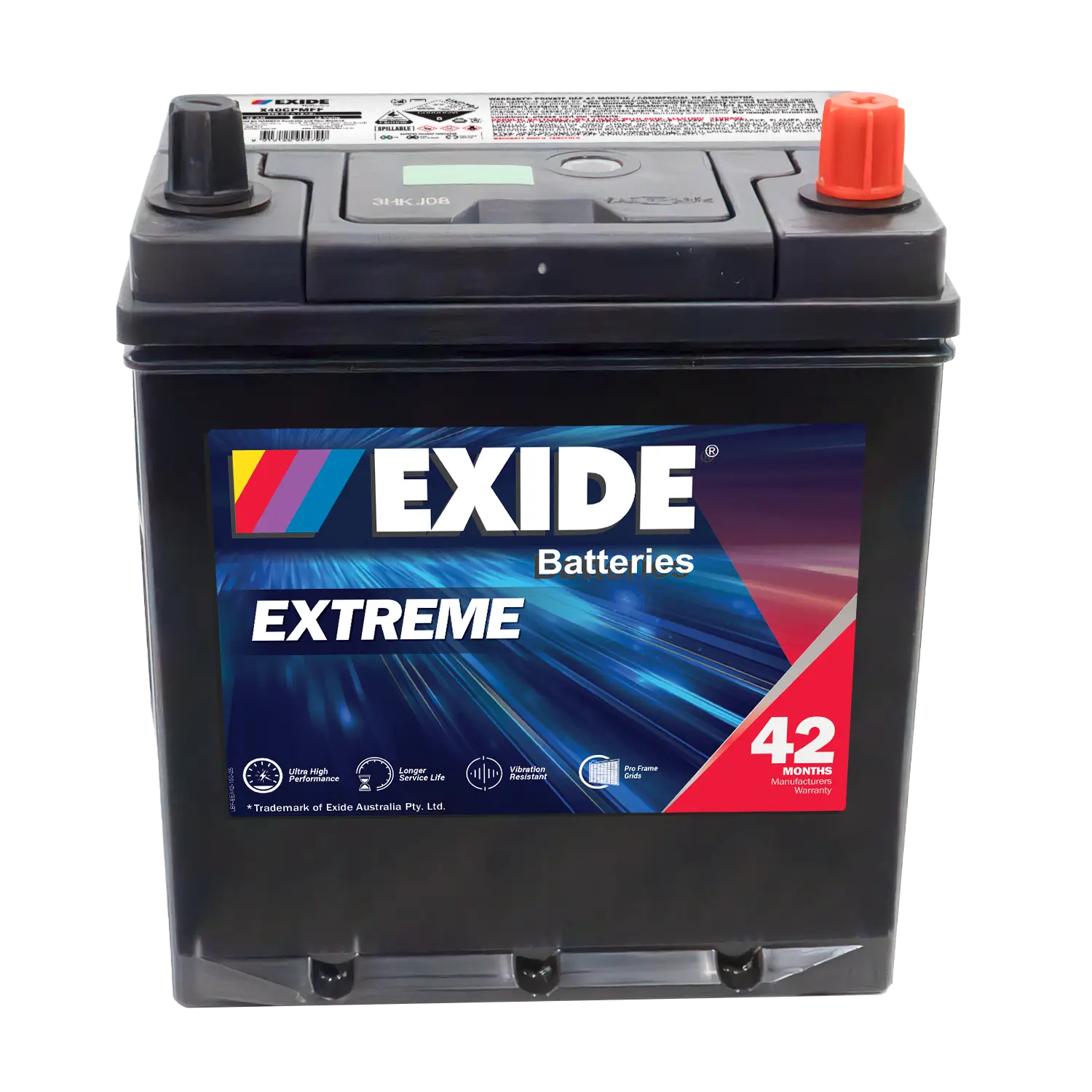

Exide X40CPMFF 12V, 370CCA Conventional Battery

X40CPMFF

Overview

The Exide Extreme X40CPMFF is a 12V Conventional Sealed Maintenance-Free battery with 370CCA (SAE) and 40Ah (20hr). It’s designed for Passenger vehicles, and carries a 42-month warranty for private use and a 12-month warranty for commercial use.

X40CPMFF

EXTREME

Product Specifications

Battery Type	PASSENGER VEHICLE RANGE
Technology	SMF CAL
Voltage	12
Capacity (AH, 20HR)	40
Cold Cranking Amps (CCA, SAE)	370
Reserve Capacity (RC, min)	–

Physical Dimensions & Weight

Size	NS40
Length (mm)	187
Width (mm)	136
Height (mm)	200
Total Height (mm)	220
Approximate Weight (kg)	9.3

Fitment & Installation

Assembly	C
Terminal/Post Type	PT
Ledge	FL

Maintenance & Usability

Accessibility	TS
Electrolyte Indicator (HYDRO)	YES

Warranty & Coverage

Private Use Warranty (Months)	42
Commercial Use Warranty (Months)	12

Datasheet

Download

Abbreviations

AP	Automotive Post	CV	Central Venting
CT	Centered Terminal	DFA	Dual Fit Aligned Terminals
DFP	Dual Fit Parallel Terminals	DST	Dual System Terminals
DT	Automotive Post & Stud	DWNT	Dual Wingnut
EL	End Ledge	ELPT	Embedded Low Profile
EUTR	Embedded Universal/Reverse	F1	F1 Terminal
F1-F2	F1/F2 Terminal	F2	F2 Terminal
F3	F3 Terminal	F3W	F3W Terminal
F5	F5 Terminal	F8	F8 Terminal
F9	F9 Terminal	F10	F10 Terminal
F10M8	F1 Terminal (1.25mmx15mm Stud I)	F11	F11 Terminal
F11M6	F11 Terminal (6mm/8mm Insert)	F12	F12 Terminal
F12M8	F12 Terminal (1.25mmx15mm Stud I)	F13	F13 Terminal
F14M8	F14 Terminal (1.25mmx15mm Stud I)	F14	F14 Terminal
F18	F18 Terminal	F22	F22 Terminal
FL	Front Ledge	FDH	Fold Down Handles
HE	Hydrometer Eye	M6	M6
M8-DT	Automotive Post & Stud (1.25mmx15mm Stud I)	M8	1.25mmx15mm Stud I
OLT	Offset Lug Terminal	PT	Pencil Terminal
RT	Recessed Terminal	RPH	Rope Handles
RTH	Retractable Handles	STD	Standard Terminal
ST	Side Terminal	TS	Top Stud Terminal
UT	Universal	WNT	Wingnut
